50Hz Cable Testing Machine / To - And - Fro Scraping Tester Test In Three Directions For Flat Wires

Product name : WGQ-60 To-and-Fro Scraping Tester Test In Three Directions for Flat Wires

Scrape Times : 1～999 preset

Sensitivity : 5±0.5mA

Testing Voltage : DC 3 to 18±0.5V adjustable

Scraping Speed : 60n/min

Stroke Length of Scraper Moves : 10±0.5mm

Diameter of Scraper : 0.45±0.01m OR 0.55±0.01mm

Power Supply : AC220V±10% 50Hz

Brand Name : ZL

Model Number : ZL-2709

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : WGQ-60 To-and-Fro Scraping Tester Test In Three Directions for Flat Wires is packaged within wooden case.

Contact Now

50Hz Cable Testing Machine / To-And-Fro Scraping Tester Test In Three Directions For Flat Wires

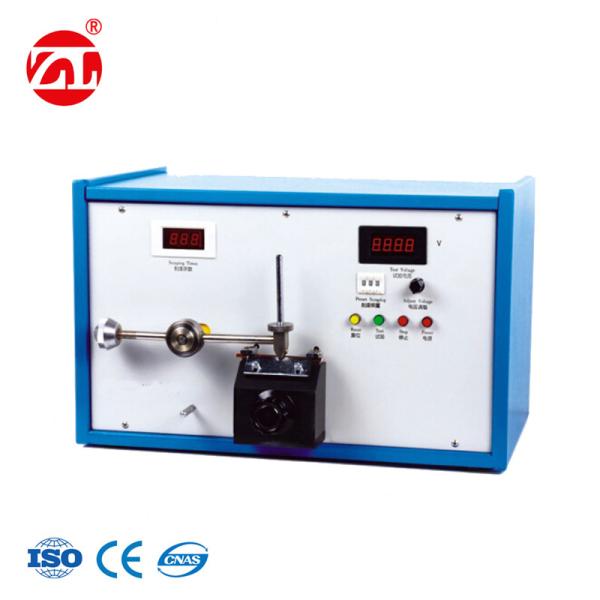

WGQ-60 To-and-Fro Scraping Tester Test In Three Directions for Flat Wires

This precision testing equipment is designed to evaluate abrasion resistance in three directions, ensuring comprehensive quality assessment for flat wire applications.

Key Features

Conforms to NEMA and JIS standards
Tests abrasion resistance of round enameled wires with diameters ≥ 0.127mm
Performs testing in three directions for comprehensive assessment

Alternative Model

WGQ-60B To-and-Fro Scraping Tester for Flat Wires

Technical Specifications

Parameter	Specification
Scrape Times	1～999 preset
Sensitivity	5±0.5mA
Testing Voltage	DC 3 to 18±0.5V adjustable
Scraping Speed	60n/min
Stroke Length of Scraper Moves	10±0.5mm
Diameter of Scraper	0.45±0.01m OR 0.55±0.01mm
Power Supply	AC220V±10% 50Hz
Consumed Power	≤100W
Dimension	L×W×H 520×380×350mm
Weight	21Kg
