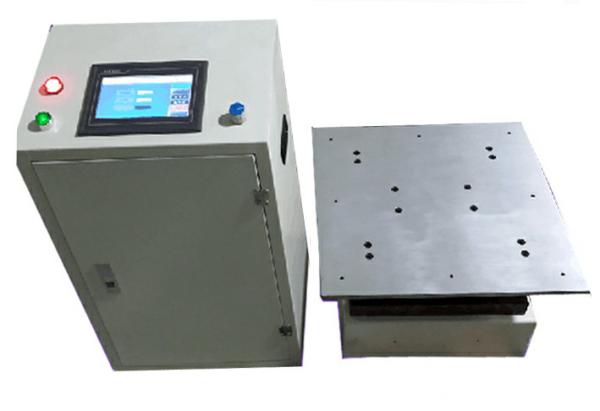

Ultra-quiet Programmable 5 ~ 400HZ Sine Wave Vertical Vibration Tester

Brand Name : ZL

Model Number : ZL-1002

Certification : CE,ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 60 Sets

Delivery Time : 5-8 work days

Packaging Details : Programmable 5 ~ 400HZ Vertical Vibration Tester is packaged within wooden case.

Product name : Programmable 5 ~ 400HZ Vertical Vibration Tester

Amplitude (adjustable range mmp-p) : 0 ~ 5mm can be arbitrarily adjusted

The maximum acceleration : 20g.

The vibration form : Sine wave

The set range : 1 ~ 350000S

Time control : Any time can be set (seconds).

The power supply voltage (V) : 220 ± 20% / (50 / 60Hz)

The maximum current : 20 (A)

Contact Now

Features:

1. Using self-developed drive and control system + control, making the equipment work more stable and reliable;
2. The test table with thick aluminum plate, precision machining, ultra-quiet;
3. Electrical control box with vertical box, beautiful structure, good stability, easy to operate;
4. Swept and fixed frequency FM operation mode, time control, adapt to different industry test requirements
5. Anti-magnetic and anti-jamming capability
6. With a safe and reliable protection

Main technical parameters of vertical vibration test stand :

Vibration frequency	5 ~ 400Hz (±0.1%) can be arbitrarily set, any frequency can be customized.
The maximum test load (kg)	Within the 0 ~ 50kg / maximum exciting force range 2000kgf be customized according to customer requirements.
The vibration table size L * Hmm	500X500, the table has a 10mm threaded holes 25 and four sides of the center hole about 7cm hook.
The frequency range 5 ~ 400HZ	FM frequency / amplitude / acceleration can be set.
Sweep range 5 ~ 400HZ	Sweep frequency / rate / amplitude / acceleration can be arbitrarily set, standard swept back and forth and can be recycled.
Programmable range 5 ~ 400HZ	Programmable frequency / amplitude / acceleration can be set.
Octave range 5 ~ 400HZ	Octave frequency / amplitude / acceleration can be set.
Amplitude (adjustable range mmp-p)	0 ~ 5mm can be arbitrarily adjusted.
The maximum acceleration (g)	20g.
Simple to set acceleration	5 ~ 400HZ do sweep frequency within acceleration constant.
Easy setting amplitude	5 ~ 400HZ do sweep frequency within the same amplitude.
The vibration form	Sine wave.
The set range (s)	1 ~ 350000
Time control	Any time can be set (seconds).
Precision	The frequency can be displayed to 0.01Hz.
The power supply voltage (V)	220 ± 20% / (50 / 60Hz).
The maximum current	20 (A).
Cooling	natural air cooling.
The working environment temperature	0 ~ + 45 ℃

Shaker main features:

A, The vibration mode: Y + (X or Z-axis).
① sine wave.
② vertical vibration.

Safety devices:

1. Timing when, automatically cut off the power supply unit
2. Overload, automatically cut off power supply unit
3. With safety warning light equipment

Electromagnetic vibration table (test machine) Main technical parameters:

Vibration table size	500X500mm
Vibration direction	vertical
Maximum load	50KG Acceleration: 20g
Frequency range	5-400HZ; can be adjusted;
Sweep range	5-400HZ (Arbitrarily setting the upper limit frequency, lower frequency, after time, the machine will be set up within the frequency range swept back and forth Run: for example, set an upper limit frequency 60HZ, lower frequency 10HZ, set the time of 1min, the machine will be in 10-60HZ Then swept back and forth between 60-10HZ run);
Amplitude (load)	0-5mm;(Amplitude at any frequency is not the same, the amplitude can be adjusted in the sweep range will vary with frequency and amplitude change)
Time control	In seconds (maximum 99H99M)
Vibration machine power	1.5KW;
Power supply voltage	220V ± 10%;
Maximum current	5A;

Ultra-quiet Programmable 5 ~ 400HZ Sine Wave Vertical Vibration Tester
